       Drip irrigation technology is to drip water slowly to the soil under low pressure through the drippers (flow stabilizer or pressure compensation dripper, drip irrigation belt, drip irrigation pipe) on the main pipe (PE pipe), branch pipe (PE pipe) and capillary pipe (PE pipe); it is an irrigation system that directly supplies filtered water, fertilizer or other chemicals to the soil. It does not have water spraying or ditch water, but only allows water to drip out slowly and enter the soil under the action of gravity and capillaries. The water dripped into the vicinity of the roots of the crops keeps the soil in the main root zone of the crops in the optimal water content. This is an advanced irrigation method.
(I) Characteristics of drip irrigation technology Compared with surface irrigation and sprinkler irrigation, drip irrigation has the following characteristics:
      1. Drip irrigation saves water and labor, increases production and income. Because during irrigation, water does not move in the air, does not wet the leaves, and does not evaporate from the soil surface outside the effective wetted area, the amount of water directly lost to evaporation is minimal; it is easy to control the amount of water, and does not cause surface runoff and deep soil seepage. Therefore, it can save 35-75% of water compared with sprinkler irrigation. It has opened up a new way to realize water conservancy in mountainous areas with few water sources and water shortage. Since there is not enough water between plants, weeds are not easy to grow, so the interference of crops and weeds competing for nutrients is greatly reduced, and the labor for weeding is reduced. Since the crop root zone can maintain the best water supply and fertilizer supply state, it can increase production.
     2. The cost of drip irrigation system is low. Due to the influence of precipitation of impurities and minerals, the capillary dripper will be blocked; so the first part should add a mesh filter, a centrifugal filter, or a laminated filter, a mesh centrifugal filter. These are necessary equipment for the large-scale promotion of drip irrigation technology. At present, the drip irrigation products generally used for economic crops such as tea and flowers are: suspended micro-sprinklers, ground-inserted micro-sprinklers, drip arrows, pressure-compensated drippers and other micro-spraying equipment.
(III) Classification of drip irrigation systems
     1. Fixed drip irrigation system. This is the most common. In this system, the capillary tubes and drippers are stationary throughout the irrigation period.
     2. Mobile drip irrigation system. Plastic pipes are fixed on some brackets, and the pipe brackets are moved by certain equipment. The other type is similar to the hourglass sprinkler, with a branch pipe rotating around the center of 200 meters long and supported by five towers. The above belongs to the mechanical mobile system. The artificial mobile drip irrigation system is a drip irrigation system in which the branch pipe and capillary pipe are moved by hand day and night. It has the least investment, but it does not save labor.

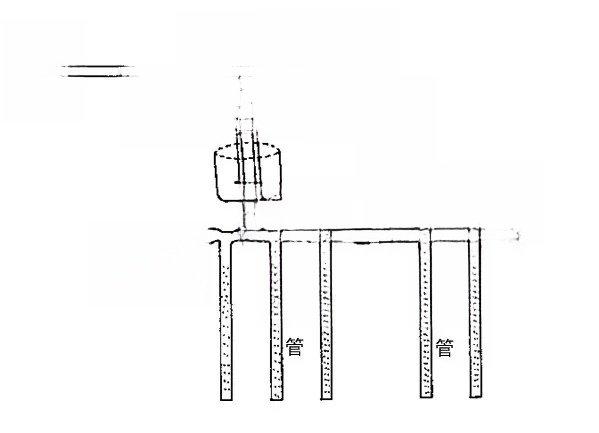

(III) Composition of the drip irrigation system The drip irrigation system mainly consists of three parts: the head hub, the pipeline and the dripper
     . 1. The head hub: including the water pump (and the power machine), the fertilizer tank, the venturi fertilizer suction device, the control and measuring instruments, etc. Its function is to pump water, fertilize, filter, and send a certain amount of water into the main pipe at a certain pressure.

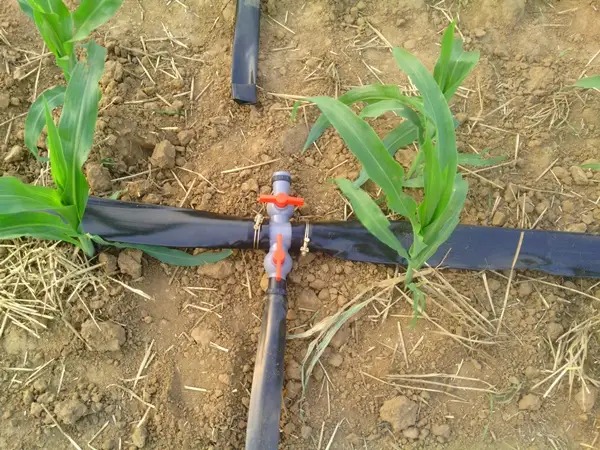

     2. Pipeline: including the main pipe (PE pipe), branch pipe, capillary pipe and necessary regulating equipment (such as pressure gauge, gate valve, flow regulator, etc.). Its function is to evenly deliver pressurized water to the dripper.
     3. Dripper: Its function is to make the water flow through the tiny hole, forming energy loss, reducing its pressure, and making it drip into the soil in a dripping manner. The dripper is usually placed on the soil surface, and can also be shallowly buried for protection.
     The most commonly used ones are: drip irrigation belt, drip irrigation pipe, micro sprinkler, flow stabilizer, small tube outflow, pressure compensation dripper, diverter, etc.

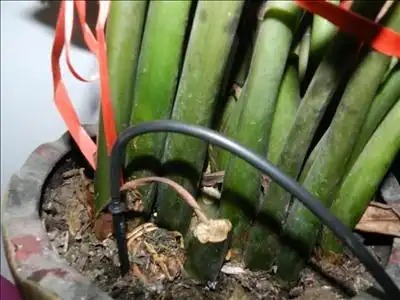

Drip

Arrow
     Drip Arrow is an important component of the drip irrigation system. There are combinations of single straight arrow, 1/2 drip arrow, 1/4 drip arrow, etc. The arrows are curved drip arrows and straight drip arrows, which can be set according to the needs of the project.
1. Features of drip arrows
     1. Labyrinth long flow channel drip arrow handle structure, diaphragm type steady flow dripper, double protection, to ensure uniform water output.
     2. Drip Arrow unique guide disc, infiltration irrigation.
     3. Single drip arrow, 1/2 drip arrow, 1/4 drip arrow, etc. can be combined at will, easy to construct.
     4. Drip Arrow working pressure: 0.8-1.5bar, single arrow flow: 1.0L/hr.
     The combination of drip arrow capillary tube and water distributor can be freely distributed in multiple irrigation points, especially suitable for potted crops. Single arrow: flow rate Q=1.0L/h, pressure P=50-150KPa. The length of the capillary tube can be freely customized according to the irrigation needs
     . The main irrigation features of the drip arrow micro-irrigation equipment are: greatly reducing labor intensity, realizing the automation of irrigation and fertilization, saving up to 95% of labor; uniform irrigation, uniformity can reach 85-95%; saving water, saving 50%-70% of water compared with manual irrigation; high water and fertilizer utilization rate, reducing pollution to the environment, small water evaporation, reducing air humidity, and reducing pests and diseases. It is suitable for potted flowers with small irrigation volume each time, but frequent irrigation times throughout the production cycle, even 3-5 times a day.
2. Types and characteristics of drip arrows:
     drip arrows are divided into two models: straight drip arrows and curved drip arrows.
     ① Curved drip arrows can freely distribute multiple irrigation points, especially suitable for potted crops.
     ② Features of straight drip arrows: The flow channel adopts a maze-type turbulent flow channel, which effectively reduces pressure and ensures uniform irrigation. The outlet of the flow channel is equipped with a unique guide disc to allow water to flow along the rod and avoid scouring the soil or substrate.
3. The difference between adjustable drippers (pressure compensating drippers, turbulators) and drip arrows in the application of drip irrigation systems.
      Systems composed of drippers or drip arrows are all drip irrigation systems, which are a water-saving irrigation method that directly and accurately delivers water and nutrients to the roots of crops at a lower flow rate. Adjustable drippers (pressure compensating drippers, turbulators) can be adjusted according to the water demand of plants, while drip arrows deliver water to the roots of plants through a constant flow of a flow stabilizer.
      In agricultural production, since the plants planted are in rows and columns, they are very regular, and they are of the same variety and have the same water demand, there is no need to consider the water difference problem at all. Mastering the water demand of one plant means mastering all, so drip arrows are widely used in agricultural production.

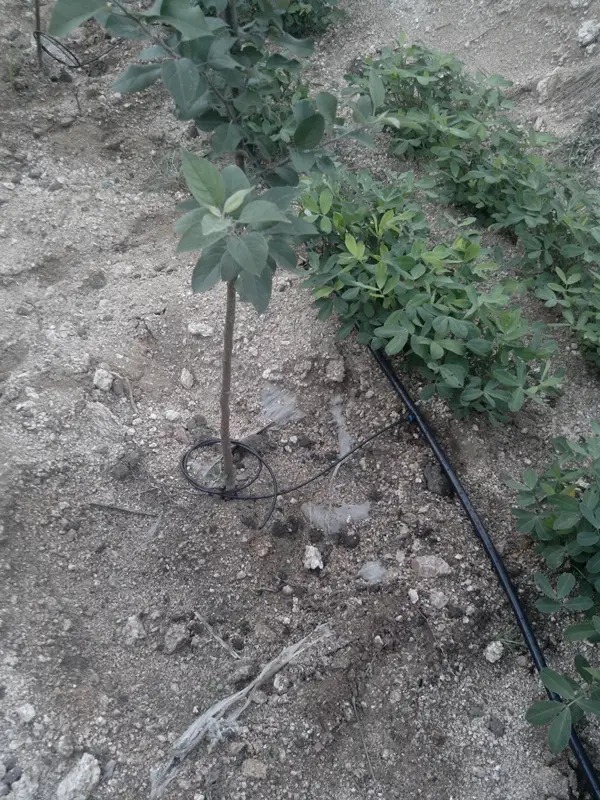

     However, in the process of drip irrigation in farmland orchards, since most of them are mainly fruit trees, the phenomenon of mixed planting of plants of different types and different water demands is very common. At this time, adjustable pressure compensating drippers or flow stabilizers + small tube outflow drip irrigation can meet the irrigation needs.
      In short, for different occasions, different types and water requirements, the reasonable selection of drippers or drip arrows is an ideal water-
saving  irrigation method.

 Safety precautions for laying drip irrigation tape

Safety precautions

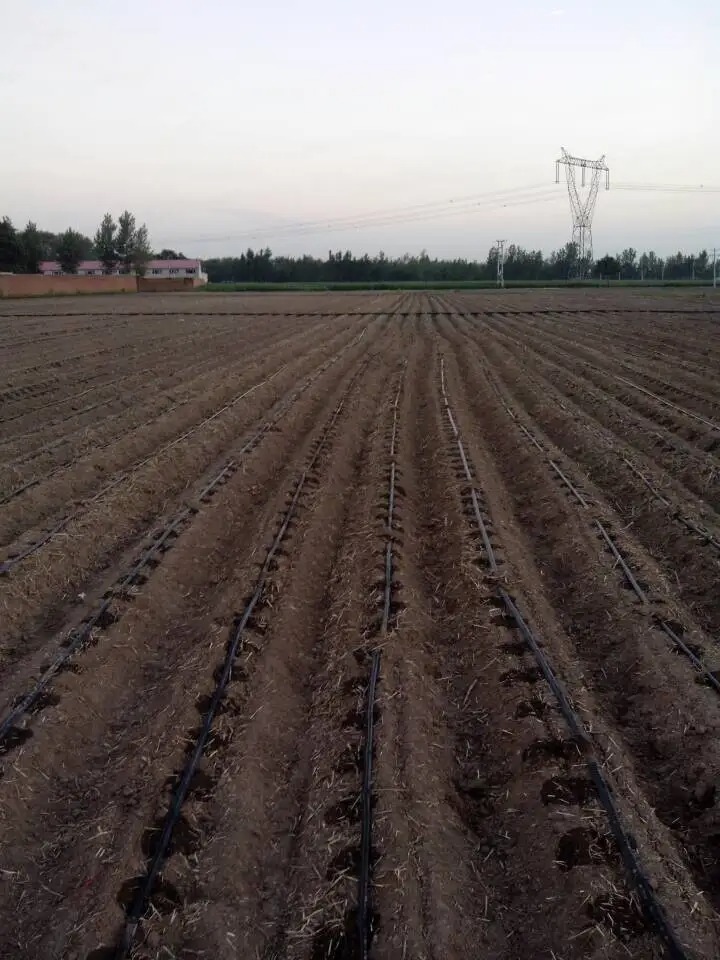

1. When laying the drip irrigation tape, keep the labyrinth side facing up (i.e. the embossed protrusion side facing up)

Lay it flat on the film. Do not lay it upside down or twist it.

  2. When laying drip irrigation tape, if it is laid mechanically, the pulley and rotating mechanism must be

The bearings should be placed to ensure that the pulley can rotate flexibly and the drip irrigation belt should not be stretched to cause the maze to deform and affect the dripping amount.

  3. After the system is installed, water should be supplied to the drip irrigation system in time to prevent the ultraviolet rays from the sun from accelerating the aging of the pipes and drip irrigation tapes.

 4. During installation, the staff must carefully read the instructions for use of each component and connect the components using the correct installation method.

 5. Once the main pipe, branch pipe and auxiliary pipe are installed on the land, be careful to prevent them from being crushed or scraped by agricultural machinery or tools to avoid external damage that reduces their service life.

 6. After the drip irrigation equipment is installed, a dedicated person should be arranged to manage it and it is strictly forbidden for others to disassemble or open or close the valve without permission.

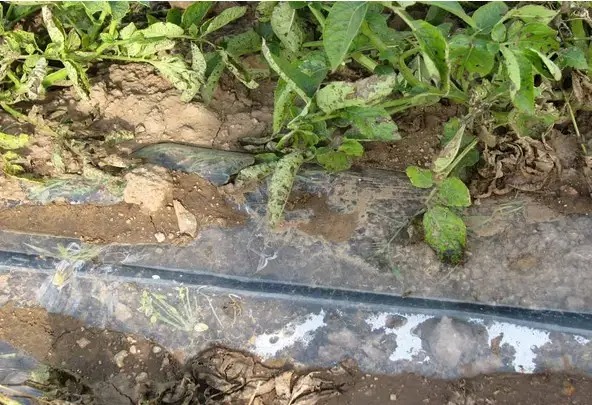

7. The plot where the drip irrigation equipment is installed should be finely tidied and the roots and stubble should be picked out. Roots and stubble, stones, weeds and other objects can easily pierce the drip irrigation belt and lift the ground film, causing water vapor to accumulate in the ground film, forming a lens effect.

8. When laying, the drip irrigation tape can be buried shallowly to avoid focal burns. You can also lay a layer of soil about 1 mm thick on the drip irrigation tape or the ground film to destroy the formation of the lens and avoid burns.

9 When irrigation, it should be carried out strictly according to the rotation irrigation group, otherwise it may cause uneven water output or poor operation of the water pump, resulting in energy waste, and failing to achieve the purpose of saving water, electricity, fertilizer and labor.

10. After drip irrigation is completed, the stem, main pipe and connecting parts should be collected and stored for use next year.

11. When dirt accumulates in the filter, the flow loss increases. When the pressure difference at both ends of the filter reaches 0.2-0.3MPa, it must be cleaned.

12. Open the end of the drip irrigation line regularly to flush dirt from the drip tube.

Pay attention to the following text signs when using:

Warning: Indicates that there is a special danger here.

Note: Indicates that there is a potential danger here, reminding the operator to pay attention.

Warning:

1. Paste on the fertilizer tank

2. Paste it on the inlet pressure gauge of the drip irrigation equipment

3. Paste it on the outlet pressure gauge of the drip irrigation equipment

4. Paste on the filter

5. Water flow direction signs are pasted on each pipe

Drip irrigation belt | Drip irrigation pipe | Water and fertilizer integration

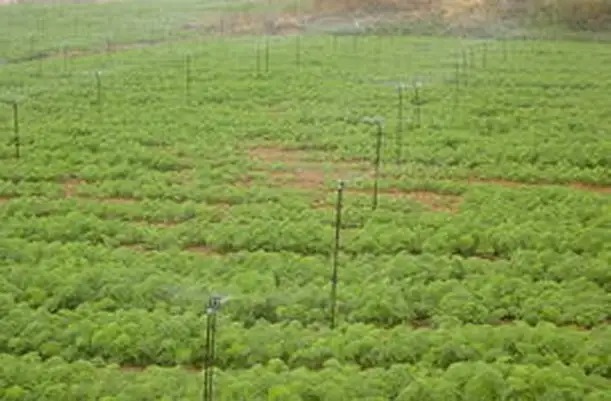

 In many countries, sprinkler irrigation or drip irrigation is a widely used irrigation technology. The new technology of using sprinkler or drip irrigation system to fertilize at the same time of irrigation (referred to as fertigation) has many advantages.

     The characteristics of sprinkler fertilization are: 1. Liquid fertilizer is conducive to the absorption and utilization of crops through roots and leaves, which can promote a significant increase in crop yields;

Second, it is to reduce the number of times that fertilizer machinery passes through the field, thereby maintaining the soil structure of the tillage layer and reducing mechanical damage;

Third, you can apply fertilizer multiple times with small doses;

Fourth, it can be used to fertilize crops that are difficult to fertilize, tall crops, and crops with compact plant types. Drip irrigation fertilization can make crops use water and fertilizers applied with water more concentratedly and effectively, so drip irrigation fertilization has many advantages such as saving water, labor, fertilizer, and increasing production. According to research, under the same conditions, compared with surface irrigation fertilization, sprinkler irrigation fertilization can save 11%-29% of nitrogen fertilizer, while drip irrigation fertilization can save 44%-57% of nitrogen fertilizer.

　　Sprinkler irrigation and drip irrigation require special irrigation equipment, but when combined with irrigation for fertilization, only certain equipment needs to be added. When using sprinkler equipment for irrigation and fertilization, a centrifugal pump is used to send the fertilizer solution to the equipment through the water suction branch pipe for irrigation and fertilization. The branch pipe of the fertilizer solution should be made of metal materials that are not corroded by the fertilizer solution. When combined with drip irrigation for fertilization, a large bucket is used to mix the fertilizer with the irrigation water, and the solution is injected into the main pipe of the drip irrigation with a nozzle.

　　Drip irrigation is the most promising fertilization technology. Currently, drip irrigation is mainly used to irrigate economic crops such as fruit trees and vegetables. According to comparative tests in small communities, compared with surface irrigation, drip irrigation can increase the yield of fruit trees by 30%-40% and that of vegetables by 30%-50%. The effect of increasing the yield of grain crops is also very obvious.

Soilless cultivation of greenhouse vegetables can also be regarded as a kind of irrigation and fertilization. The specific method is: first use clay pots, small tanks, flower pots or cement pools as seedbed containers, first lay a layer of 10-15 cm sandstone blocks at the bottom of the container, then fill it with ordinary river sand, and then sow the soaked vegetable seeds on the sand bed of the container. After the seedlings emerge, they are planted in the container for growth, and irrigated with nutrient solution or automatic liquid supply 1-2 times a day, and the number of times is appropriately increased during the fruiting period.

Implement drip irrigation technology products: drip irrigation tape | drip irrigation pipe | micro sprinkler | PE pipe | mesh centrifugal filter | Venturi fertilizer absorber or fertilizer tank | PE pipe fittings and other products.

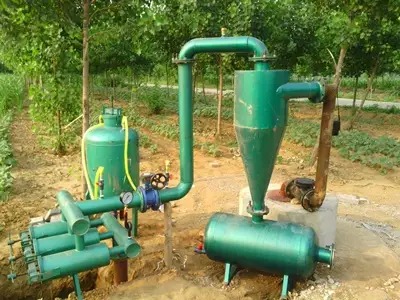

Centrifugal mesh filter
