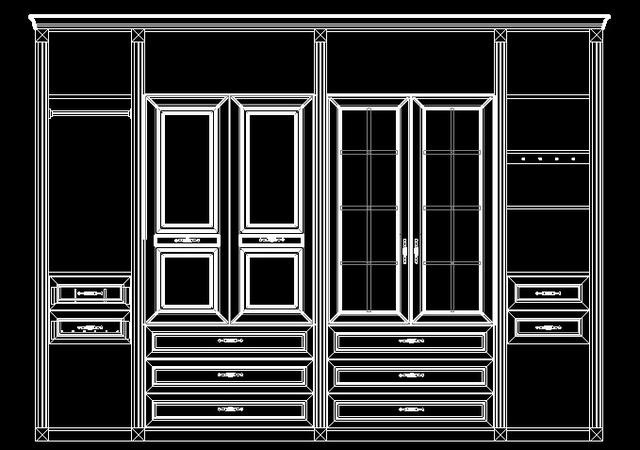

The common dimensions of custom wardrobes on the market are generally: 2400mm high, 1800mm long, divided into two units of 900mm long, and 600mm deep. This is not only convenient in actual use, but also greatly increases the firmness of the wardrobe. Blindly expanding or reducing certain areas will not only bring inconvenience in future use, but may also cause hidden dangers to the firmness of the wardrobe. So what is the internal dimension diagram of a custom wardrobe? The following is a reference for the internal dimension diagram of a custom wardrobe. Let's take a look at it together. I hope it will be helpful for everyone in formulating the internal dimensions of a custom wardrobe.

Summary of overall dimensions:

1. Overall space division: If you want to do it thoroughly, follow the 60-150-60 principle (i.e. 600mm for the upper cabinet, 1500mm for the middle cabinet, and 600mm for the lower cabinet)! If there are multiple floor heights, the lower cabinet is generally 2100mm, and the rest belongs to the upper cabinet. If the lower cabinet is too high, the requirements for the door panel are very high, and the possibility of deformation will increase a lot after a long time!

2. Each storage space in the wardrobe has its own size. According to the designer, the height of the cabinet for hanging short clothes or suits should not be less than 80cm; the height of the cabinet for hanging long coats should not be less than 130cm; the height of the drawer should not be less than 15cm to 20cm; as for the cabinet for stacking clothes, the width of the cabinet should be between 33cm and 40cm and the height should not be less than 35cm based on the width of the clothes after folding; the upper part of the entire wardrobe is usually set up to place quilts and other uncommon items, and the height should not be less than 40cm.

3. The most common depth of the wardrobe is 600mm. The depth of the wardrobe is 530-620mm. Including the door, the width of the whole wardrobe is 600mm. This width is not a big problem for storing clothes. The narrowest door cannot be less than 530mm, otherwise it will pinch the sleeves. If the room area is limited and you can only have a narrower wardrobe, you can use a pull-out farm pole, which has several sizes, and the wardrobe depth can be up to 350mm.

4. The drawers in the wardrobe should generally be set within an area less than one meter. A single drawer is usually 200mm per grid, and it should not be less than 150mm and should not be wider than 250mm!

5. Height of different clothes: Short clothes, tops and suits should be at least 800mm high. Long coats cannot be lower than 1300mm in the cabinet, otherwise they will drag to the bottom of the cabinet. It is better to be higher than too low! The space for trouser hangers should be 650mm, and if you use hangers, it should be at least 700mm.

6. Personal needs: For example, if you want to place bras, underwear, socks, accessories, and ties, you can make grids in the drawer, or you can buy ready-made grids on Taobao or IKEA and put them in. It's very convenient!

Details of the design dimensions for each node:

1. Large wardrobe: The depth is generally 55-60 cm. If the indoor space is not particularly small, it is recommended to choose a depth of 60 cm. The manufacturer charges the same for 55 and 60 cm, but the feeling of hanging clothes is indeed very different.

2. Casement doors: The best width is between 45 and 60 cm. The best width for sliding doors is between 60 and 80 cm. The hinge's pressure-bearing capacity is not as good as the track, so in the production of casement door wardrobes, the door panels should not be too wide or too heavy.

3. Hanging coat area: The long clothing area is mainly used to hang long clothes such as windbreakers, down jackets, coats, dresses, and formal wear. A height of 140 cm is sufficient for hanging coats, the longest nightgown hanging height is less than 140 cm, the long down jacket is 130 cm, and the suit is only 120 cm long after being stored in a bag. You can also design the width of the long clothing area according to the number of long clothes you own. Usually, a width of 450 mm is enough for one person. If more people use it, you can widen it appropriately or design multiple long clothing areas.

4. Tops hanging area: Tops area is used to hang suits, shirts, coats and other tops that are prone to wrinkles. The height of the tops should be between 85-95 cm. For the convenience of placing the clothes hanger, the distance between the clothes hanging rod and the cabinet top should be greater than or equal to 60 mm. According to the normal length of the clothes, in order to prevent the clothes from dragging on the bottom of the board, the distance between the clothes hanging rod and the bottom board should be greater than 900 mm. In addition, please note that the distance from the clothes hanging rod to the ground should not exceed 1800 mm according to the individual's height, otherwise it will be inconvenient to take.

5. Pants hanging area: Pants hangers are specially used to hang pants, which are not easy to wrinkle. All pants are folded in half and hung, so the distance between the hanging rod and the bottom plate cannot be less than 600mm, otherwise the pants will drag on the bottom plate. It is recommended to buy a wardrobe with a non-slip pants tong to prevent pants from falling; while ordinary pants tongs are easy to fall.

6. Stacking area: This area can be designed as an adjustable movable board layer, which is convenient for changing the height or changing to other areas according to needs. For example, when more clothes are hung, a clothes hanging rod can be placed to change it to a top area. This area is mainly used to stack sweaters, T-shirts, casual pants and other clothes. It is best to arrange it between the waist and the eyes for easy access. According to the width of general clothes after folding, the cabinet width should be between 330-400mm and the height should be 350-400mm.

7. Bedding area: According to the usual height of quilts, this area is usually 400-500mm high and 900mm wide. This space is mainly used to store quilts that are not used during the change of seasons. Since it is inconvenient to take items, the upper part of the wardrobe is usually used as the bedding area, which is also conducive to moisture-proofing.

8. Shoe box storage area: The height of the shoe box can be designed according to the height of two shoe boxes, and it is best to control it within 25-30 cm.

9. Backpack storage area: The height of the backpack storage area is very flexible. It can be designed from the perspective of the overall aesthetic design of the wardrobe, and try to be as "flat" as possible according to the size requirements of other spaces.

10. The distance between the clothes hanging rod and the upper panel: When installing the clothes hanging rod, you should pay attention to the fact that the clothes hanging rod must be centered according to the actual depth of the wardrobe, and there must be a distance of 4-6 cm from the upper panel. This size must be met. If the distance is too short, it will be more difficult to place the clothes hanger in the future, and if the distance is too long, it will waste space. The clothes hanging rod also belongs to the hardware series. A good clothes hanging rod should have at least two to three screws on both sides to fix the ends. Pay attention when positioning and drilling.

11. The installation height of the clothes rail: The clothes rail also belongs to the hardware series. A good clothes rail should have at least two or three screws on both sides to fix the ends. Be sure to pay attention when positioning and drilling. The installation height of the clothes rail should be the height of the hostess plus 20 cm.
